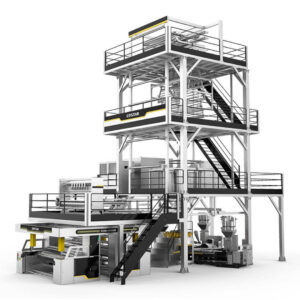

Five-layer co-extrusion machine makes high-barrier, strong films for food, pharma, and electronics, with excellent oxygen and moisture barrier and freshness retention.
Five-layer co-extrusion machine makes high-barrier, strong films for food, pharma, and electronics, with excellent oxygen and moisture barrier and freshness retention.
| Model | SJ65/55/55/55/65-1800 | SJ75/55/55/55/75-2000 | |
|---|---|---|---|
| BASIC PARAMETER | Suitable Materials | LDPE, LLDPE, mLLDPE, PA, TIE | |
| Film Width | 1000-1600mm | 1200-1750mm | |
| Film thickness | 0.04-0.12mm | ||
| Maximum output | 230-300kg/hr | 300-400kg/hr | |
| EXTRUDER | Screw diameter | ф 65；ф 55； | ф 75；ф 55； |
| Aspect ratio | 1:32 | 1:32 | |
| Main motor power | 45kw×2 37kw×3 | 55kw×2 37kw×3 | |
| Reduction box model | 225×2 200×3 | 250×2 200×3 | |
| Die head diameter | ф 450mm | ф 550mm | |
| Air ring diameter | ф 490mm | ф 590mm | |
| Blower | 18.5kw | 22kw | |
| Screen changing method | Dual-station manual quick screen change | ||
| TAKE UP UNIT | Roller width | 1800mm | 2000mm |
| Take-up speed | 5-90m/min | 5-90m/min | |
| Take-up motor | 1. 5kw | 2.2kw | |
| Roary type | Horizontal type | Horizontal type | |
| EPC correction | Centering or edge alignment Ultrasonic photoelectric type | ||
| WINDIND UNIT | Winder Type | Automatic central gap winder | |
| Automatic tension system | Auto Tension control | ||
| Winding motor power | 1. 5kw | 2.2kw | |
| Winding speed | 5-90m/min | 5-90m/min | |
| CONTROL UNIT | Electrical part | Schneider | |
| Control system | Austria B+R system or China brand systm | ||
| Inverter | Yaskawa、Delta、Inovance、Slanvert（According to customer requirements） | ||
| (LxWxH) | Dimension | 14m×9.5m×13.5m | 15m×9.5m×14.5m |
