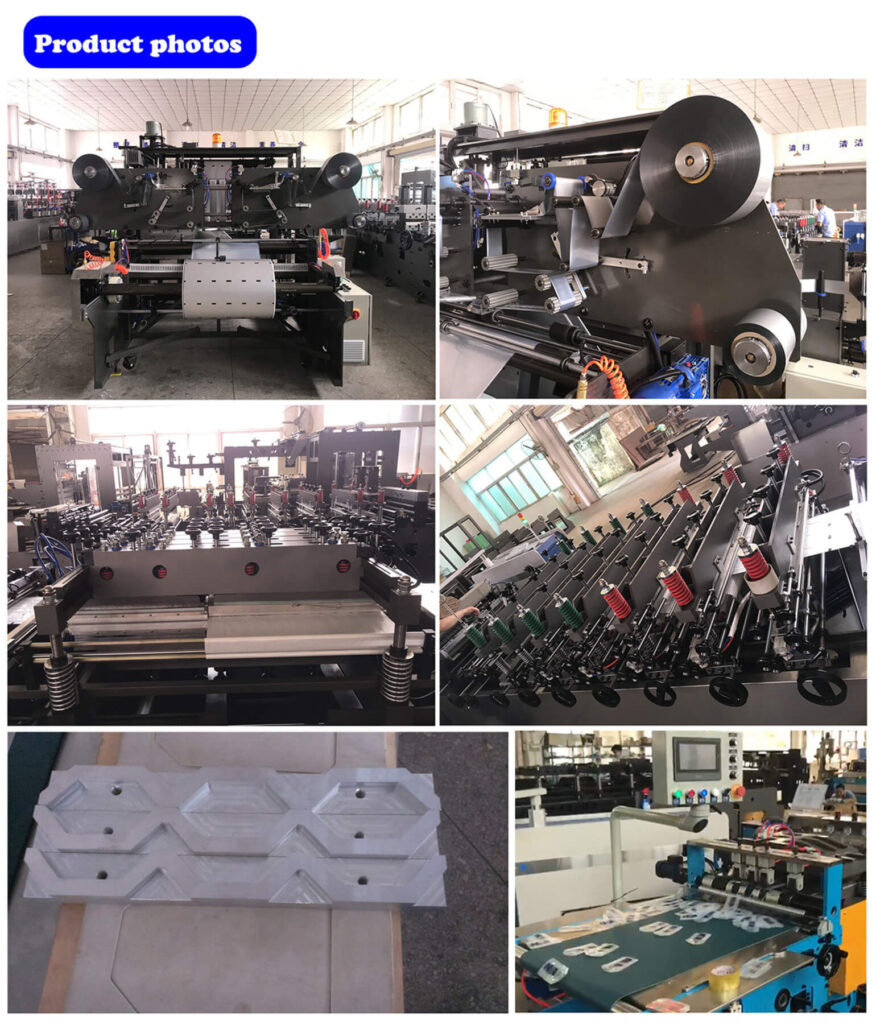

This machine is used for making Penguin pouch (3 bags feeding).
This machine is used for making Penguin pouch (3 bags feeding).
| 1 | Film material | Various heat-sealed plastic laminated film,；Thickness: 0.06-0.15mmVarious heat-sealed plastic laminated film,；Thickness: 0.06-0.15mm |
| 2 | Max bag making beating: | 120parts/min （Machine designing speed） |
| 3 | Max film reel unwinding speed: | 45m/min (Machine designing speed) |
| 4 | Capacity: | 60-120parts/min;If 3 lanes: 180-360 bags/min. |
| 5 | (Actual capacity is according to the bag length, film material and hot sealing efficiency.) | |
| 6 | Film reel size: | Main film:Max φ800×1220mm(width),inner hole：3′（76.2mm） |
| Gusset film: Max φ500×150mm,inner, hole：3′ air shaft | ||
| 7 | Pouch size: | Bag width=65-85mm;Bag length= Max180mm.(One bag feeding: 180×3=540mm)Bag gusset=20-70mm; |
| 8 | Total power | About 50KW |
| 9 | Power voltage | AC Three phase 380V，50HZ |
| 10 | Air pressure: | 0.5-0.7Mpa |
| 11 | Cooling water: | 10L/min |
| 12 | Machine working table height: | (hot sealing moulds) 860mm |
| handle operation height 750mm | ||
| 13 | Machine dimension(MAX): | L×W×H: 11500mm×4600mm×2200mm |
| 14 | Machine weight: | about 6000KG |
| 15 | Machine color: | Gray (wallboard)/ stainless steel (guard board) |
1.This machine is used to make packaging bags of various laminated films. Through the optional auxiliary device, it can be widely suitable for making three-side seal bag, stand-up pouch, and Penguin bag.
